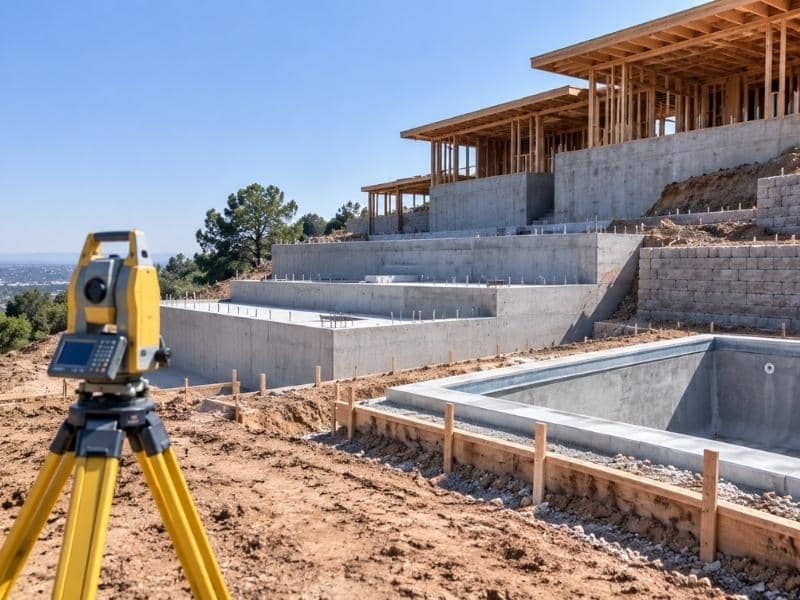

A house that steps down a hillside asks a great deal from the people who lay it out. A construction survey holds every piece of that puzzle to one shared framework, so the foundation, the pool, the walls and the yard all land where the drawings put them. Sloped sites punish small mistakes, because an error in height and an error in position feed each other quickly. One misplaced stake can throw off three different trades before anyone notices.

Translating a Multi-Level Design Onto Sloped Ground

Everything starts with project control that covers the whole site, not only the house pad. The surveyor sets horizontal control points and at least one protected benchmark, then builds every elevation on the plans from that same benchmark. Each foundation step, each terrace and each pool deck ties back to it.

Working from one source keeps the levels honest. A crew that sets one step from the step above it, then the next from that one, stacks small errors until the bottom of the house drifts away from the design. Going back to the benchmark each time keeps the lowest level as accurate as the highest.

Holding the Pool Position Relative to the House

The pool rarely stands alone on a sloped lot. Its position depends on the deck width, the clearance to the house, the setback from a wall and the height between the water and the nearest floor. Shift the pool one foot sideways and a walkway can drop below the width that code requires. That small move can force a redesign of the whole rear yard.

Utilities make that picture harder. Pool equipment needs power, water and drainage, and those lines must reach the pool without crossing footings or cutting through a wall foundation. The layout crew stakes the shell, the deck edges and the equipment pad together, so the plumber and the electrician are not left guessing.

Staking Retaining Elements in the Correct Sequence

Retaining walls carry the entire site, so their place in the schedule matters as much as their location. A wall that holds up the house pad has to go in before the pad exists. A wall built out of order can also block the access route a later crew needs for equipment.

Crews stake wall faces rather than only wall centerlines. A base two feet thick looks very different in the field from a single line on a plan. The staking also shows where the footing spreads out, since that footing often reaches into the exact space where someone planned to run a pipe.

Wall height gets the same treatment. The top of a wall has to meet the pad it supports, and it has to meet the grade on the low side as well. Crews mark both, so the mason can see the finished shape rather than build to a guess and hope the dirt work matches later.

Verifying Vertical Transitions Before Concrete Placement

Concrete forgives nothing. Before a pour, the surveyor checks the height of pads, stem walls, steps and terraces against the design. Fixing a form takes an hour, and fixing a poured wall takes a week. These checks catch forms that settled, stakes that got bumped and grades that shifted during excavation.

The checks look at the relationship between levels, not just each level on its own. A stem wall can sit at the right height and still be wrong if the pad beside it moves. Comparing the pieces against each other catches errors that single point checks miss completely.

Maintaining References After the Original Stakes Disappear

Excavation destroys stakes. That is not a failure. It is simply what happens when a machine cuts into ground where markers sit, and every experienced crew plans for it from the first day.

Offset stakes placed well outside the work zone survive the machines, and they let the surveyor rebuild the layout without starting over. Preserved benchmarks matter even more on a stepped project, since every elevation on the site traces back to them. A benchmark set on a rock outcrop or on a neighboring structure usually lasts through the job.

Restaking then becomes a quick visit instead of a full remobilization. Common reference points worth protecting on a sloped site include:

• a primary benchmark set outside the grading limits
• offset stakes for each foundation step, marked with the cut or fill
• control points for the pool shell that sit clear of the deck excavation
• reference marks for wall faces at each end of a long retaining run

Frequently Asked Questions

Can the same construction control be used for the house, pool, and retaining walls?

Yes, and it should be. One control network and one benchmark keep all three elements in the same coordinate system, which is the only dependable way to hold the clearances between them. Separate layouts built from different references tend to drift apart in ways nobody catches until the concrete cures.

When should stepped foundation elevations be checked?

Check them once the excavation reaches grade, again after the forms go up and a final time right before the pour. Each check catches a different kind of problem, and all three happen while a correction still costs very little.

What happens when excavation removes the original survey stakes?

The surveyor returns and restakes from protected offset points and the preserved benchmark, which is exactly why those references get set away from the work. The layout gets rebuilt from the original control instead of from finished construction, so no earlier error carries forward into new work.
